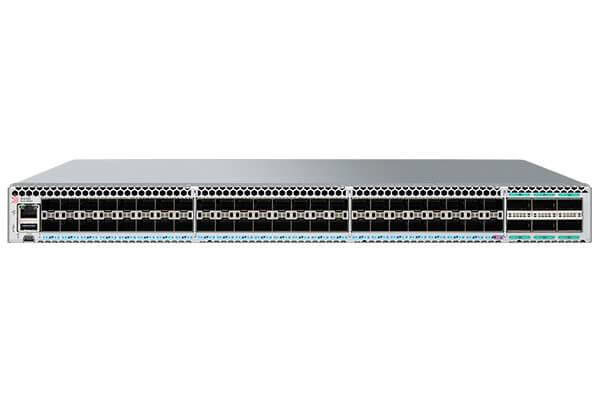

Коммутатор ExtremeSwitching SLX 9540-24S, DC, F-to-B BR-SLX-9540-24S-DC-F в Москве

Vendor Code	BR-SLX-9540-24S-DC-F

Specifications	SLX 9540 - 24S
100 GbE/40 GbE ports enabled per switch	N/A
10 GbE/1 GbE combo ports enabled per switch	24
1 GbE ports enabled per switch	24
Port type	10 GbE SFP+ 1 GbE SFP+
Packet buffers per switch	6 GB
MAC address scale	640,000
VLAN scale	4,096
Route scale (in hardware)	256,000 (IPv4), 64,000 (IPv6)
Jumbo frame (maximum size)	9,216 bytes
QoS priority queues (per port)	8
MPLS	With SLX-OS advanced feature license
Carrier Ethernet 2.0	With SLX-OS advanced feature license
NSX	With SLX-OS advanced feature license
Element Security
AAA
Username/Password (Challenge and Response)
Bi-level Access Mode (Standard and EXEC Level)
Role-Based Access Control (RBAC)
RFC 2865 RADIUS
RFC 2866 RADIUS Accounting
TACACS/TACACS+
RFC 5905 NTP Version 4
NTPdate
RFC 5961 TCP Security
RFC 4253 Secure Shell (SSH)
Secure Copy (SCP v2) SFTP
HTTPS
RFC 4346 TLS 1.1
RFC 5246 TLS 1.2
Protection against Denial of Service (DoS) attacks such as TCP SYN or Smurf Attacks
Environmental
Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: –25°C to 55°C (–13°F to 131°F)
Relative humidity: 5% to 90%, at 40°C (104°F), non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 6,600 ft (2,012 m)
Storage altitude: 15,000 ft (4,500 m) maximum
Safety Agency Approvals
CAN/CSA-C22.2 No. 60950-1-07
ANSI/UL 60950-1
IEC 60950-1
EN 60950-1 Safety of Information Technology Equipment
EN 60825-1
EN 60825-2
Power and Grounding
ETS 300 132-1 Equipment Requirements for AC Power Equipment Derived from DC Sources
ETS 300 132-2 Equipment Requirements for DC Powered Equipment
ETS 300 253 Facility Requirements
Physical Design and Mounting
19-inch rack mount supporting racks compliant with:
ANSI/EIA -310-D
GR-63-CORE Seismic Zone 4
Environmental Regulatory Compliance
EU 2011 65 EU RoHS
EU 2012 19 EU WEEE
EC 1907 2006 REACH
