| 802.11AC CAPABILITIES | Quad radios (3 Wi-Fi radios + one Bluetooth® radio)
Band-unlocked Network Sensor for WIPS and Location Service
4X4 MU-MIMO with 4 Spatial Streams
Auto Selecting MU-MIMO supports 1 and 2 stream wireless clients
20, 40 and 80 MHz Channels. 160MHz and 80Mhz + 80MHz in a future release
Packet Aggregation (AMSDU, AMPDU) and RIFS
MIMO Power Save (Static and Dynamic)
Advanced forward error correction coding: STBC, LDPC
802.11ac transmit beamforming
Maximal Ratio Combining (MRC)
NitroQAM provides up to 800 Mbps on 2.4GHz radio and up to 2166 Mbps on 5GHz radio
Support for up to 256* associated client devices per access point and up to 16 BSSIDs per radio |
USER ENVIRONMENT
|
| Operating Temp | 0° C to 50° C |
| Storage Temp | -40° C to 70° C |
| Operating Humidity | 95% RH non-condensing |
| Electrostatic Discharge | ESD to ±12KV air and ±8KV contact |
ANTENNA INFORMATION
|
| Internal Antenna model | • Radio 1 (2.4GHz) : 5.2dBi
• Radio 2 (5.2GHz): 6.8 dBi
• Radio 3 (2.4GHz/5.2GHz): 4.9/5.9 dBi
• Radio 4 (2.4GHz): Integrated antenna with 7.7dBi |
| External Antenna model | • Radio 1,2 : up to 10dBi
• Radio 3 (2.4GHz/5.2GHz) integrated antenna: 4.9/5.9 dBi
• Radio 4 (2.4GHz): dual-mode antenna option.
Integrated antenna with 7.7dBi or optional external antenna up to 11dBi |
DC POWER SPECIFICATIONS
|
| Operating Power | Max Power Consumption: 24W
Typical Power Consumption: 12W |
| MAXIMUM RADIATED TRANSMIT POWER (RMS) |
|
| Internal Antenna model | • Radio 1, 2.4GHz band: 32.2dBm (1670 mW)
• Radio 2, 5.2GHz band: 32.8dBm (1915 mW)
• Radio 3, 2.4GHz/5.2GHz dual band sensor:
• 2.4GHz band: 25.9 dBm (389 mW)
• 5.2GHz band: 22.9 dBm (195 mW)
• Radio 4: 13.7 dBm (23.4mW) with integrated antenna |
| External Antenna model | • Radio 1, 2.4GHz band: 34dBm (2524 mW)
• Radio 2, 5.2GHz band: 33dBm (2005 mW)
• Radio 3, 2.4GHz/5.2GHz dual band sensor:
• 2.4GHz band: 25.9 dBm (389 mW)
• 5.2GHz band: 22.9 dBm (195 mW)
• Radio 4: 13.7 dBm (23.4mW) with integrated antenna or up to 17 dBm (50 mW) with 11dBi external antenna |
| ACCESSORIES |
|
| Power | PWR-BGA48V45W0WW
AP-PSBIAS-2P3-ATR
AP-PS85-1P1-WW – Power Splitter |
| Mounting | KT-135628-01
BRKT-000147A-01 |
REGULATORY
|
| Approvals and Certifications | UL / cUL 60950-1, IEC / EN60950-1, UL2043, RoHS. FCC (USA), EU, TELEC |
PHYSICAL CHARACTERISTICS
|
| Dimensions | 210mm x 210mm x 24mm |
| Weight | 1.27kg |
| Mounting | Included mounting bracket for flush mount or T-bar mount. |
| LEDS | System status: Green, Amber, Blue, White |
| LAN Ethernet | 2x IEEE 802.3 Gigabit Ethernet auto-sensing |
| Antenna Connectors | AP-8533-68SB30: internal antenna
AP-8533-68SB3E: internal antenna

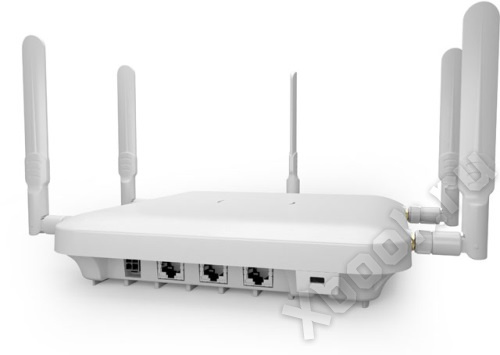

AP-8533-68SB40; five RP SMA connectors; one RP-SMA dedicated for BT/BLE radio |
| Console | RJ45 |
RADIO SPECIFICATIONS
|
| Wireless Medium | DSSS, OFDM, MIMO, MU-MIMO |
| Network Standards | IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, WMM-UAPSD, L2TPv3, 802.11b/g: 1-54 Mbps 802.11a: 6-54 Mbps 802.11n: MCS 0-31 up to 600 Mbps; 802.11ac: MCS 0-9 up to 1.733 Gbps ; In Nitro mode, radio 1 and 2 data rates can go up to 1000Mbps and 2166Mbps respectively. |
| Operating Channels | 2.4 GHz band: channel 1-13 5.2 GHz band: channel 36-165 2412 to 2472 MHz, 5180 to 5850 MHz Channel availability depends on local regulatory restriction |
| Antenna Configurations | • Radio 1: 2.4GHz: 4x4 with 4SS
• Radio 2: 5GHz: 4x4 with 4SS
• Radio 3: Dual Band Sensor: 1x3 with 3SS
• Radio 4: Bluetooth radio with selectable single integrated antenna or external antenna |
| Conducted Radio Power | Up to 21dBm, depending on local regulatory restrictions, in 1dB increments |
| Operating Frequencies | 2412 to 2472 MHz, 5180 to 5850 MHz |
| NETWORKING |
|
| Layer 2 and Layer 3 | Layer 3 routing, 802.1q, DynDNS, DHCP server/ client, BOOTP client, PPPoE and LLDP |
| Security | Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot) with captive portal, IPSec and RADIUS Server |
| QoS | WMM, WMM-UAPSD, 802.1p, Diffserv and TOS. Role based QoS with rule based packet marking |
| CERTIFICATES | Wi-Fi™ Alliance (WFA) certified 802.11 a/b/g/n/ac, Passpoint 2.0 (certificates completed at General Product Availability) |
