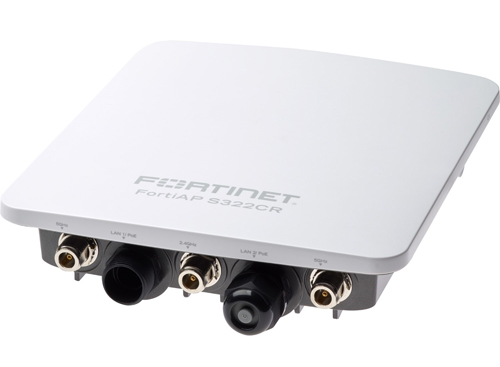

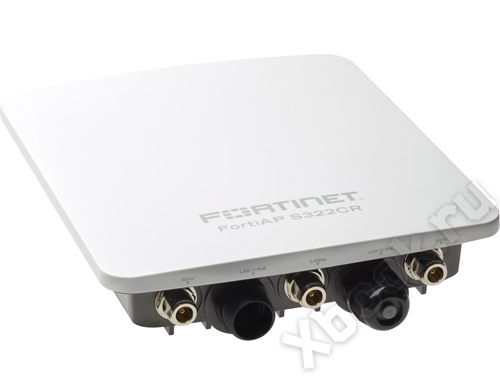

Точка доступа FortiAP, 802.11ac Wave 1, внешние антенны FAP-S322CR-E в Москве

Vendor Code	FAP-S322CR-E

Hardware	FORTIAP S322CR
Hardware Type	Outdoor
Number of Radios	2
Number of Antennas	6 N-type external
Peak Antenna Gain	3 dBi for 2.4 GHz, 3 dBi for 5 GHz
Frequency Bands (GHz) *	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency of Radio 1	2.4 GHz b/g/n
Frequency of Radio 2	5 GHz a/n/ac
Throughput	Radio 1: Up to 450 Mbps, Radio 2: Up to 1300 Mbps
Tx/Rx Streams	3x3 MIMO with 3 spatial streams
Ethernet Ports	2x GE RJ45
USB Port	—
Serial Console Port	—
Power over Ethernet (PoE)	Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W)
WME Multimedia Extensions	Yes (4 priority queues for voice, video, data and background traffic)
Simultaneous SSIDs	16 (14 if background scanning enabled)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power	20 dBm (100 mW)*
Physical Security	Kensington Lock
Mean Time Between Failures	>20 years
IEEE Specifications	802.11a, 802.11ac, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af
802.11ac 80MHz Channel	Yes
802.11n Features	• 20 MHz and 40 MHz High-Throughput (HT) Support • Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation • Conserve power via Dynamic MIMO power save
Advanced 802.11n to enhance rate-over-range including:	• Low-density parity check (LDPC) encoding • Maximum likelihood demodulation • Maximum Ratio Combining (MRC) for improved receiver performance
Mounting Options	Wall or Pole Mounting
Included Accessories	Ceiling, T-Rail and wall mount kit
FortiPresence Capable	Yes
Wireless Monitoring Capabilities
Frequencies scanned	2.4 and 5 GHz
Background scan with client access on 2.4 and 5 GHz	Yes
Full-time scan as dedicated monitor	Yes
Full-time scan with client access on 5G GHz	Yes
Dimensions
Length x Width x Height	9.8 x 8.66 x 2.09 inches (24.9 x 22 x 5.3 cm)
Weight	2.43 lbs (1.1 kg)
Package (shipping) Weight	8.09 lbs (3.67 kg)
Environment
Power Supply	PoE 48V DC, 0.8A
Power Consumption (Average / Maximum)	19.68 W / 20.16 W
Humidity	5–90% non condensing
Operating Temperature	-22–140°F (-30–60°C)
Storage Temperature	-40–158°F (-40–70?C)
Directives	Low Voltage Directive • RoHS
Warranty
Limited Lifetime Warranty	No — 1 Year Limited Warranty

Hardware

FORTIAP S322CR

Hardware Type

Outdoor

Number of Radios

Number of Antennas

6 N-type external

Peak Antenna Gain

3 dBi for 2.4 GHz,

3 dBi for 5 GHz

Frequency Bands (GHz) *

2.400–2.4835, 5.150–5.250,

5.250–5.350, 5.470–5.725,

5.725–5.850

Frequency of Radio 1

2.4 GHz b/g/n

Frequency of Radio 2

5 GHz a/n/ac

Throughput

Radio 1: Up to 450 Mbps, Radio 2: Up to 1300 Mbps

Tx/Rx Streams

3x3 MIMO with 3 spatial streams

Ethernet Ports

2x GE RJ45

USB Port

—

Serial Console Port

—

Power over Ethernet (PoE)

Dual redundant PoE power ports with support for IEEE 802.3at (25.5 W)

WME Multimedia Extensions

Yes (4 priority queues for voice, video, data and background traffic)

Simultaneous SSIDs

16 (14 if background scanning enabled)

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST

User/Device Authentication

WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web

Captive Portal, MAC blacklist & whitelist

Maximum Tx Power

20 dBm (100 mW)*

Physical Security

Kensington Lock

Mean Time Between Failures

>20 years

IEEE Specifications

802.11a, 802.11ac, 802.11b, 802.11e, 802.11g, 802.11h,

802.11i, 802.11j, 802.11n, 802.1x, 802.3af

802.11ac 80MHz Channel

Yes

802.11n Features

• 20 MHz and 40 MHz High-Throughput (HT) Support

• Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation

• Conserve power via Dynamic MIMO power save

Advanced 802.11n to enhance rate-over-range including:

• Low-density parity check (LDPC) encoding

• Maximum likelihood demodulation

• Maximum Ratio Combining (MRC) for improved receiver performance

Mounting Options

Wall or Pole Mounting

Included Accessories

Ceiling, T-Rail and wall mount kit

FortiPresence Capable

Yes

Wireless Monitoring Capabilities

Frequencies scanned

2.4 and 5 GHz

Background scan with client access on 2.4 and 5 GHz

Yes

Full-time scan as dedicated monitor

Yes

Full-time scan with client access on 5G GHz

Yes

Dimensions

Length x Width x Height

9.8 x 8.66 x 2.09 inches

(24.9 x 22 x 5.3 cm)

Weight

2.43 lbs (1.1 kg)

Package (shipping) Weight

8.09 lbs (3.67 kg)

Environment

Power Supply

PoE 48V DC, 0.8A

Power Consumption (Average / Maximum)

19.68 W / 20.16 W

Humidity

5–90% non condensing

Operating Temperature

-22–140°F (-30–60°C)

Storage Temperature

-40–158°F (-40–70?C)

Directives

Low Voltage Directive • RoHS

Warranty

Limited Lifetime Warranty

No — 1 Year Limited Warranty
