| Internal Drive Bay | Type / Q'ty | 2.5" fixed / (2) |
| Supported HDD Interface | SATA-II 3.0Gb/s |
| System | Form Factor | 2U Rackmount |
| Chassis Model | TA70 |
| Dimension (D x W x H) | 27.56" x 16.93" x 3.43" (700 x 430 x 87mm) |

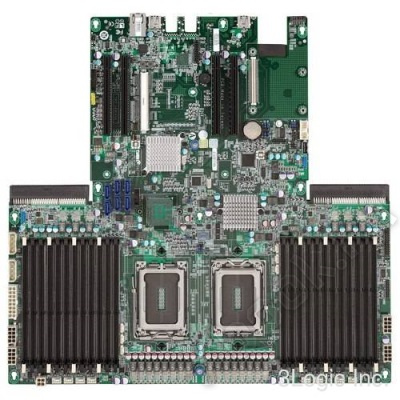

| Motherboard | S8237PN |
| Gross Weight | 31 kg |
| Front Panel | Buttons | (1) PWR / (1) RST / (1) ID |
| LEDs | (1) PWR / (1) ID / (1) Warning |
| I/O Ports | (2) USB ports |
| External Drive Bay | Type / Q'ty | 2.5" Hot-Swap / (24) *Need a discrete HBA/RAID adapter to enable |
| HDD backplane support | SAS / SATA 6.0Gb/s |
| System Cooling Configuration | FAN | (3) 6056 fans + (2) 6038 fans |
| Power Supply | Type | ERP1U |
| Input Range | AC100V ~ AC240V/ 9.5A~5A |
| Output Watts | 750 Watts |
| Efficiency | 80 plus gold |
| Redundancy | 1+1 |
| Processor | Socket Type / Q'ty | G34 / (2) |
| Supported CPU Series | AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors (Magny-Cours) / AMD 32nm 8-Core/12-Core/16-Core Opteron 6200 Series Processors (Interlagos) / AMD 32nm 8-Core/12-Core/16-Core Opteron 6300 Series Processors (Abu Dhabi) |
| System Bus | Up to 6.4 GT/s Hyper-Transport link support |
| Average CPU Power (ACP) wattage | Up to 140W / *No fan redundancy when 140W CPUs are deployed |
| Chipset | Chipset | AMD SR5670 + SP5100 |
| Memory | Supported DIMM Qty | (12)+(12) DIMM slots |
| DIMM Type / Speed | RDIMM 1866/1600/1333/1066/800 |
| Capacity | Up to 768GB RDIMMs |
| Memory channel | 4 Channels per CPU |
| Expansion Slots | PCI-E | (2) PCI-E Gen2 x16 slots (w/ x8 link) |
| Note: | (1) Mezzanine slot (w/ x8 link) for selective network I/O adapters |
| Pre-install TYAN Riser Card | M2212-R16-2F/ (2) |
| LAN | Port Q'ty | (1) |
| Controller | Broadcom BCM5725 |
| Storage | Connector | (24) SAS |
| Speed | 6.0 Gb/s |
| RAID | From discrete HBA/RAID adatper |
| Connector | (2) SATA |
| Controller | AMD SP5100 |
| Speed | 3.0 Gb/s |
| RAID | RAID 0/1/10 |
| I/O Ports | USB | (4) ports (2 at front, 4 at rear) |
| RJ-45 | (1) port |
| System Monitoring | Chipset | NCT6681D |
| Temperature | Monitors temperature for CPU |
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator |
| Others | Watchdog timer support |
| Server Management | Onboard Chipset | Onboard Broadcom BCM 5725 |
| BIOS | Brand / ROM size | 4MB |
| Feature | Hardware Monitor / PXE boot support / SMBIOS 2.5/PnP/Wake on LAN / ACPI 3.0/ACPI sleeping states S1,S4,S5 |
| Regulation | FCC (DoC) | Class A |
| CE (DoC) | Yes |
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity | 90%, non-condensing at 35° C |
| RoHS | RoHS 6/6 Compliant | Yes |
| Package Contains | Manual | (1) Quick Installation Guide |
| Installation CD | (1) TYAN installation CD |
| Heatsink / Cooler | (2) FRU-TH-0070, CPU PASSIVE-HEATSINK |
| Rail kit | (1) sliding rail kit |
| Power Cord | (2) CCBL-0300, EU type power cord / (2) CCBL-0317, US type power cords |
| Barebone | (1) TA70-B8237 Barebone |
