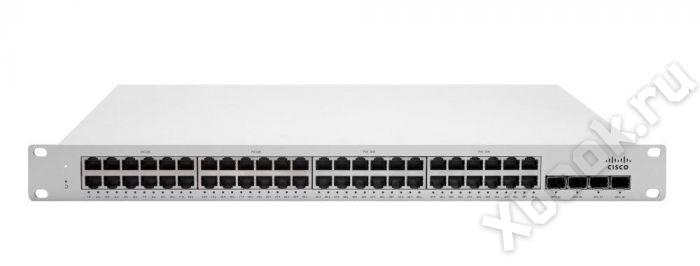

Коммутатор Cisco Meraki MS350-48LP-HW в Москве

Коммутаторы Cisco семейства Meraki созданы для крупных предприятий и объединяют в себе производительность и гибкость. Cisco CloudManagement позволит, после подключения сетевого кабеля, удалённо произвести настройку коммутатора через облачные приложения, не затрачивая дополнительных средств на конфигурацию устройства. Также, предоставляет набор инструментов для управления и мониторинга сетями.

Технические характеристики коммутатора Cisco Meraki MS350-48LP-HW:

Interfaces

• 48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
• 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS350-48P models, available on all ports (maximum of 30W per port for PoE+)
• 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
• 2 × Stacking interfaces
• Auto negotiation and crossover detection

Ethernet switching capabilities

• 802.1p Quality of Service prioritization
• 802.1Q VLAN tagging with 4,095 addressable tags
• 802.1D Spanning Tree Protocol (RSTP, STP)
• 802.1ab Link Layer Discovery Protocol (LLDP)
• 802.3ad link aggregation with up to 8 ports per aggregate
• Broadcast storm control
• IGMP snooping for multicast filtering
• MAC forwarding table entries: 96,000

Security

• Integrated two-factor authentication
• Role-based administration
• Corporate wide password policy enforcement
• IEEE 802.1X port-based security

Performance

• Non-blocking fabric
• 176 Gbps non-blocking switching capacity
• 2.5 microsecond latency

Power over Ethernet (PoE models):

• 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
• MS350-48LP maximum PoE output: 370 W
• MS350-48FP maximum PoE output: 740 W
• PoE available on all ports simultaneously
• Pre-standard PoE: supports pre-standard PoE devices

Management

• Managed via the cloud using the Meraki dashboard
• Integrated with Meraki wireless, routing, and firewall management
• No-touch remote deployment (no staging needed)
• Detailed historical per-port and per-client usage statistics
• DHCP and hostname fingerprinting
• SNMP v2c
• Seamless over-the-web firmware upgrades

Remote diagnostics

• Email and text alerts
• Live remote packet capture
• Aggregated event logs with instant search

Scalable stacking

• Unified configuration and monitoring of all switches
• Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
• Physically stack up to 8 switches for added resiliency in high-throughput environments

Layer 3 capabilities

• Static routing
• Dynamic routing (OSPFv2)
• DHCP Server and Relay
• Warm spare (VRRP) with DHCP Failover

Power

• Power input: 100-240 VAC, 47-63 Hz
• MS350-48 power consumption: 56-63 W max
• MS350-48LP power consumption: 63-478 W max
• MS350-48FP power consumption: 70-888 W max

Environment

• Operating temperature: 32°F to 113°F (0°C to 45°C)
• Humidity: 5 to 95% non-condensing

MTBF (at 25°C)

• MS350-48: 588,000 hours
• MS350-48LP: 536,000 hours
• MS350-48FP: 516,000 hours

Warranty

• Lifetime hardware warranty with advanced replacement included

Physical dimensions (H × W × D)

MS350-48

• 1.74" x 19.1" x 20.4" (4.44 x 48.6 x 51.8 cm) with power supply fitted
• Weight: 12.85 lb (5.83 kg)

MS350-48LP

• 1.74" x 19.1" x 20.4" (4.44 x 48.6 x 51.8 cm) with power supply fitted
• Weight: 13.82 lb (6.27 kg)

MS350-48FP

• 1.74" x 19.1" x 22" (4.44 x 48.6 x 55.87 cm) with power supply fitted
• Weight: 15.0 lbs (6.8 kg)
